iQ GRANIT SD

KEY FEATURES
  • Permanently static-dissipative
  • Best life-cycle cost on the market
  • Unique dry-buffing surface restoration
  • Part of a multi-solution offer

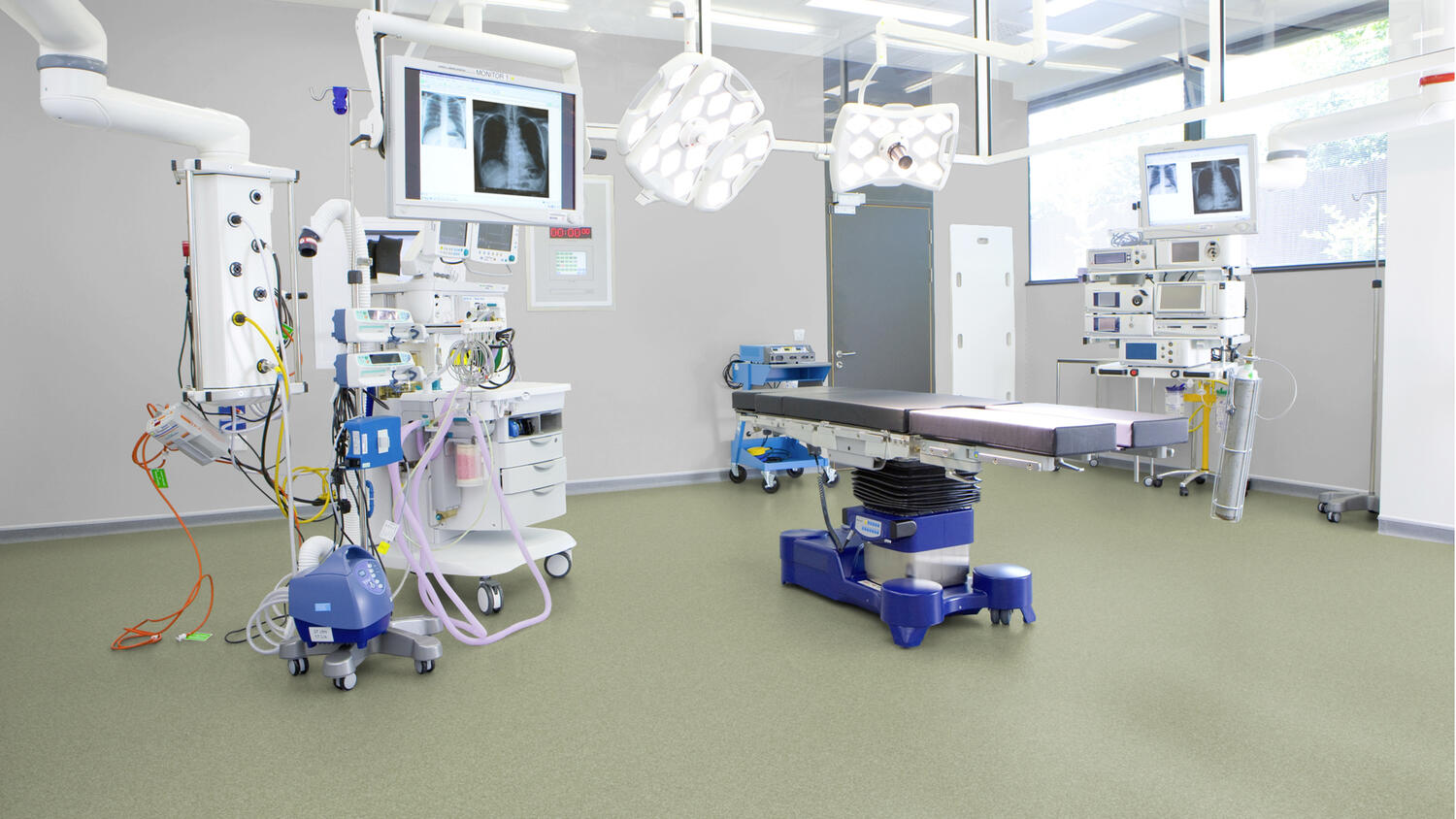

iQ Granit SD is a permanently static-dissipative vinyl flooring for use in heavy-traffic laboratories, clean rooms and ESD-sensitive areas in hospitals. It delivers the perfect combination of stable and reliable conductivity alongside the proven durability of the iQ flooring range. It is specially designed to coordinate with the colors of the other products and accessories of the iQ Granit multi-solution family.

${title | uppercase}

TECHNICAL AND ENVIRONMENTAL SPECIFICATIONS

Product type ISO Homogeneous poly(vinyl chloride) floor covering (ISO 10581)
CE Marking EN 14041
Commercial classification (ISO 10874) 34 Very Heavy
Industrial classification (ISO 10874) 43 Heavy
Basis weight 2950 g/m²
Total thickness 2.00 mm
Surface treatment iQ PUR
Installation method Glue-Down
Form of delivery for tiles Tile 610 mm x 610 mm ( 14 tiles/box | 5.20 m² )
Tile 610 mm x 610 mm
Form of delivery for rolls Roll 23 m x 2 m
Dimensional stability 0.40 %
Curl resultant to heat (ISO 23999) 2 mm
Electrostatic property (EN 14041) Static dissipative
Electrical resistance (EN 1081) 106 ≤ R ≤ 109 Ohms
Electrostatical propensity (EN 1815) ≤ 2 kV
Clean room (ISO 14644-1) ISO 4
Slip resistance (DIN 51130) R9
Slip resistance (EN 13893) DS class (µ ≥ 0.30)
Reaction to fire (EN 13501-1) Bfl-s1
Reaction to fire on fibrecement substrate (EN 13501-1) Bfl-s1
Reaction to fire on woodchip substrate (EN 13501-1) Bfl-s1
Reaction to fire on gypsum substrate (EN 13501-1) Bfl-s1
Underfloor heating Yes (maximum 27°C)
Castor chair effect (ISO 4918) No damage
Furniture leg effect (ISO 16581) No damage
Chemical resistance (ISO 26987) Excellent Resistance
Thermal resistance (in m².k / W) 0.01
Color fastness - light (ISO 105-B02) 7
Residual indentation 0.10 mm
Formaldehyde emission (EN 717-1) E1 (≤0.124 ppm)
REACH Yes
BREEAM rating A+
Phthalate content phthalate free
TVOC emissions after 28 days (ISO 16000-9) Platinum (≤ 10 µg / m³)
TVOC RTS emission class M1
TVOC - SCS Floorscore Yes
